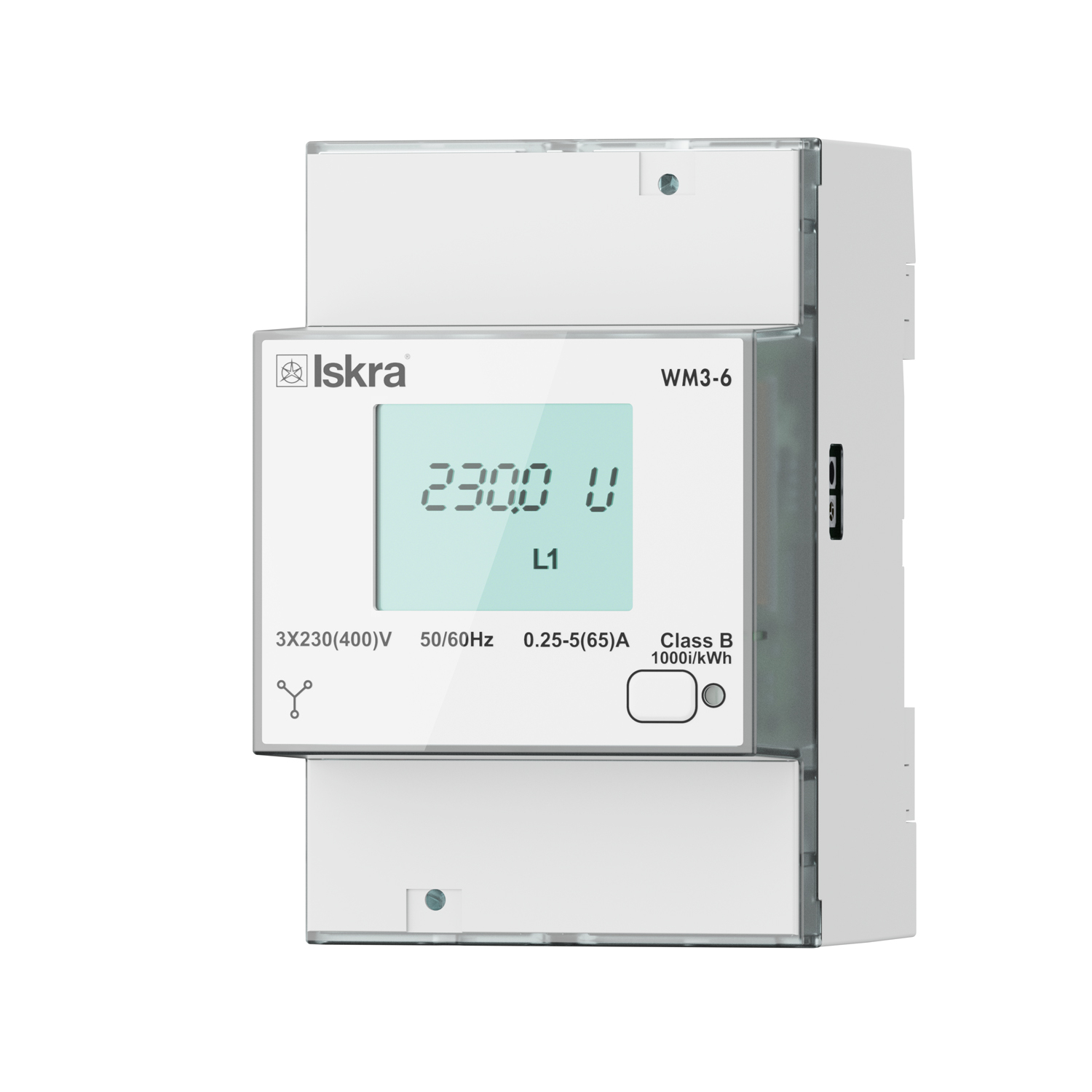

WM3-6 230TB TARIFA
022433920002 EAN: 383865130060
311522
WM3-6 230TB TARI
Login for price and stockTechnical specifications
| Mounting method | DRA (DIN-rail adapter) |
| Width (mm) | 53.6 |
| Model | Direct measurement |
| Height (mm) | 84 |
| Depth (mm) | 64 |
| Suitable for | Purchase/supply |
| Type of indication | Digital |
| Frequency (Hz) | 50 - 60 |
| Max. current (Imax) (A) | 65 |
| Width in number of modular spacings | 3 |
| Number of positions total (counter) | 8 |
| Type of meter | Electronic |
| Degree of protection (IP) | IP50 |
| Type of interface | Other |
| Energy type | Effective power and blind power |
| Tariff type | Two-tariff |
| Tariff control | Internal/external |
| Calibrated | No |
| Approval | Measuring Instruments Directive |
| Pulse output | Optic |
| Pulse type | D0 |
| Pulse rate (Imp/kWh (kvarh)) | 1000 |
| Accuracy class | B |
| Pole type | Three conductor/four conductor |
| EEC40 signature | 0 |
| With lock code | Yes |
| Rated voltage (Un) N-L (V) | 230 |
| Rated voltage (Un) L-L (V) | 230 |
| Rated current (In) (A) | 5 |
