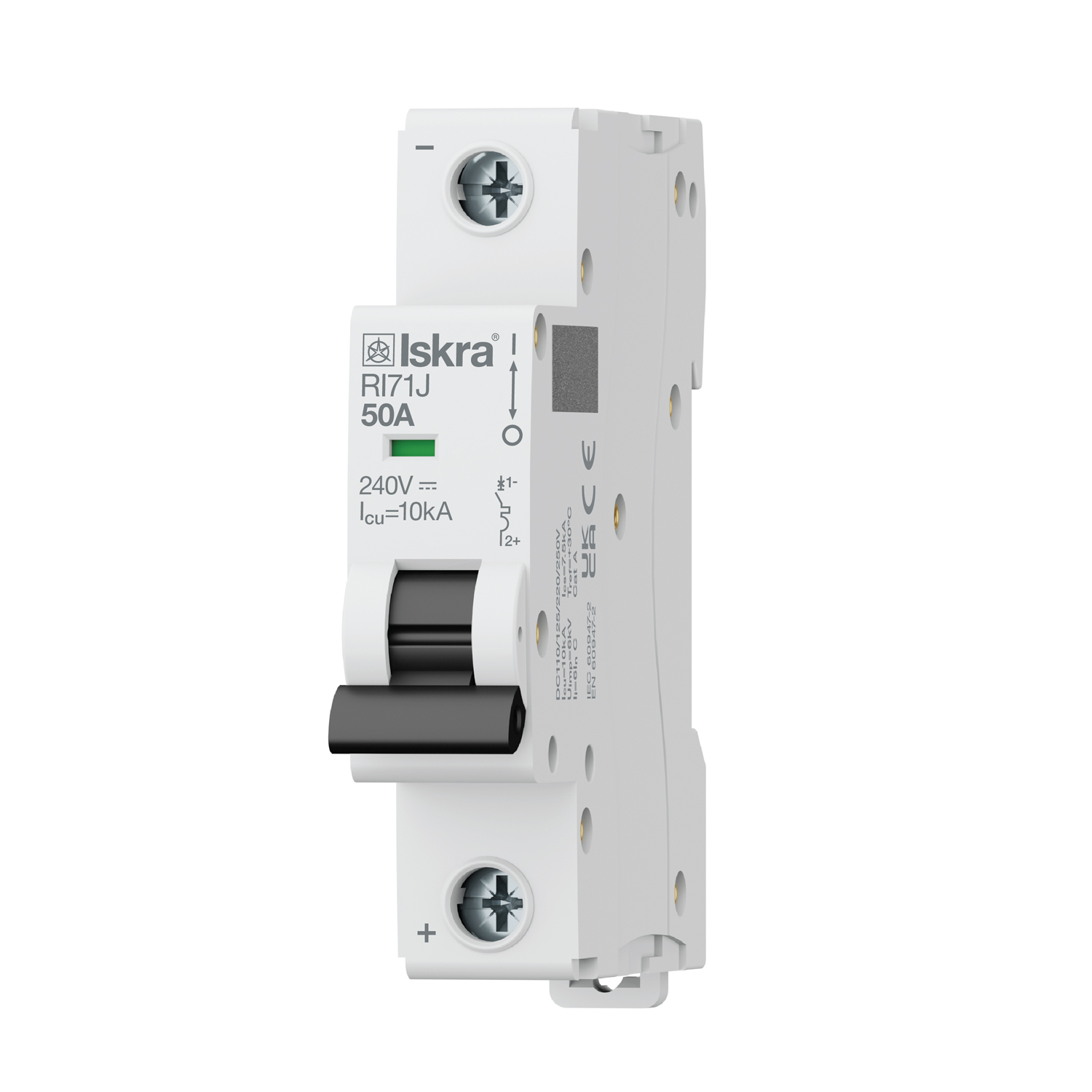

RI71J C50
786091435000 EAN: 3838733088746
521411
RI71J C50
Login for price and stockTechnical specifications
| Voltage type | DC |
| Nominal rated current (A) | 50 |
| Nominal rated voltage (V) | 220/250 |
| Frequency (Hz) | 50 - 60 |
| Release characteristic | C |
| Rated insulation voltage Ui (V) | 1000 |
| Current limiting class | 1 |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Width in number of modular spacings | 1 |
| Degree of protection (IP) | IP20 |
| Number of protected poles | 1 |
| Concurrently switching N-neutral | 0 |
| Suitable for flush-mounted installation | |
| Connectable conductor cross section solid-core (mm2) | 1.5 - 25 |
| Connectable conductor cross section multi-wired (mm2) | 1.5 - 25 |
| Ambient temperature during operating (°C) | -25 - 55 |
| Additional equipment possible | |
| Number of poles (total) | 1 |
| Rated impulse withstand voltage Uimp (kV) | 6 |
