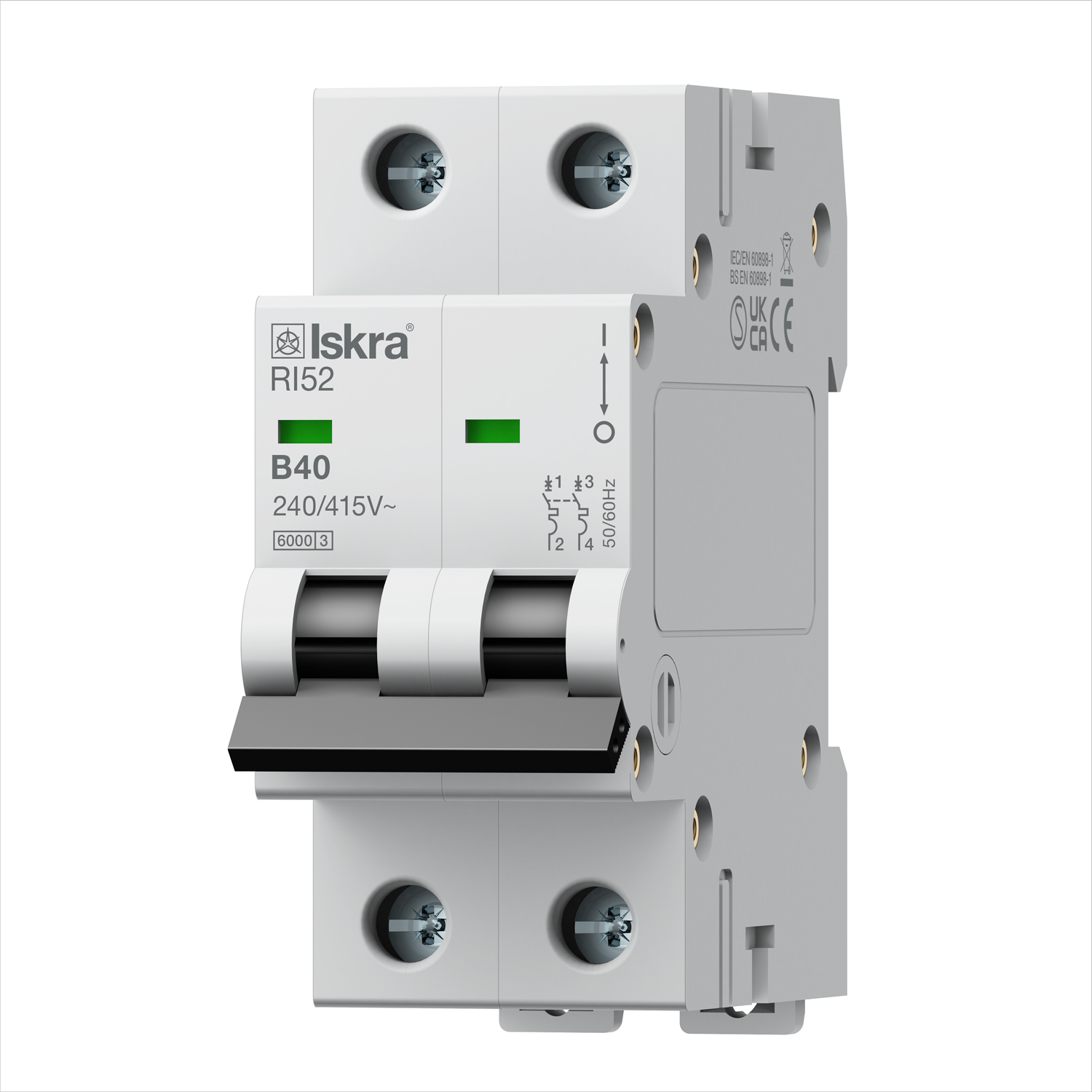

RI52 B40
786091030000 EAN: 3838733096031
521411
RI52 B40
Login for price and stockTechnical specifications
| Voltage type | AC |
| Built-in depth (mm) | 44 |
| Nominal rated current (A) | 40 |
| Nominal rated voltage (V) | 240/415 |
| Frequency (Hz) | 50 - 60 |
| Release characteristic | B |
| Rated insulation voltage Ui (V) | 500 |
| Current limiting class | 3 |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Width in number of modular spacings | 2 |
| Degree of protection (IP) | IP20 |
| Number of protected poles | 2 |
| Concurrently switching N-neutral | 0 |
| Suitable for flush-mounted installation | |
| Connectable conductor cross section solid-core (mm2) | 1 - 25 |
| Connectable conductor cross section multi-wired (mm2) | 1 - 25 |
| Ambient temperature during operating (°C) | -5 - 40 |
| Additional equipment possible | |
| Number of poles (total) | 2 |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V (kA) | 6 |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V (kA) | 6 |
| Rated impulse withstand voltage Uimp (kV) | 4 |
