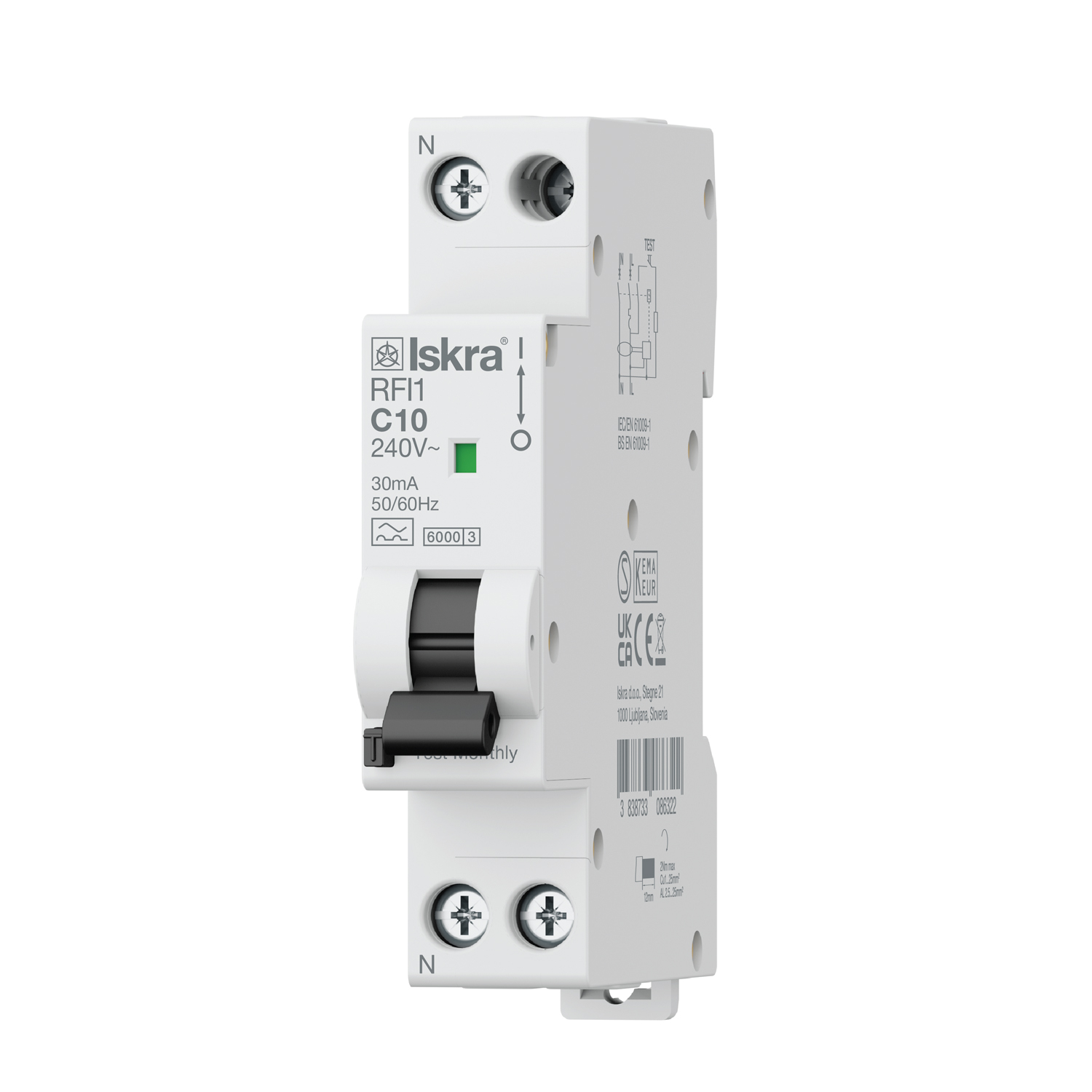

RFI1E A C10/0,03
786101989000 EAN: 3838733085936
521421
RFI1E A C10/0,03
Login for price and stockTechnical specifications
| Voltage type | AC |
| Built-in depth (mm) | 50 |
| Nominal rated current (A) | 10 |
| Nominal rated voltage (V) | 230 |
| Release characteristic | C |
| Rated insulation voltage Ui (V) | 500 |
| Rated fault current (A) | 0.03 |
| Leakage current type | A |
| Over voltage category | 3 |
| Pollution degree | 3 |
| Width in number of modular spacings | 1 |
| Frequency | 50 Hz |
| Degree of protection (IP) | IP20 |
| Number of protected poles | 1 |
| Concurrently switching N-neutral | |
| Rated short-circuit breaking capacity IEC 60947-2 (kA) | 6 |
| Suitable for flush-mounted installation | |
| Connectable conductor cross section solid-core (mm2) | 1 - 10 |
| Connectable conductor cross section multi-wired (mm2) | 1 - 10 |
| Ambient temperature during operating (°C) | -25 - 40 |
| Number of poles (total) | 2 |
| Rated short-circuit breaking capacity Icn acc. EN 61009-1 (kA) | 6 |
| Disconnection characteristic | Undelayed |
