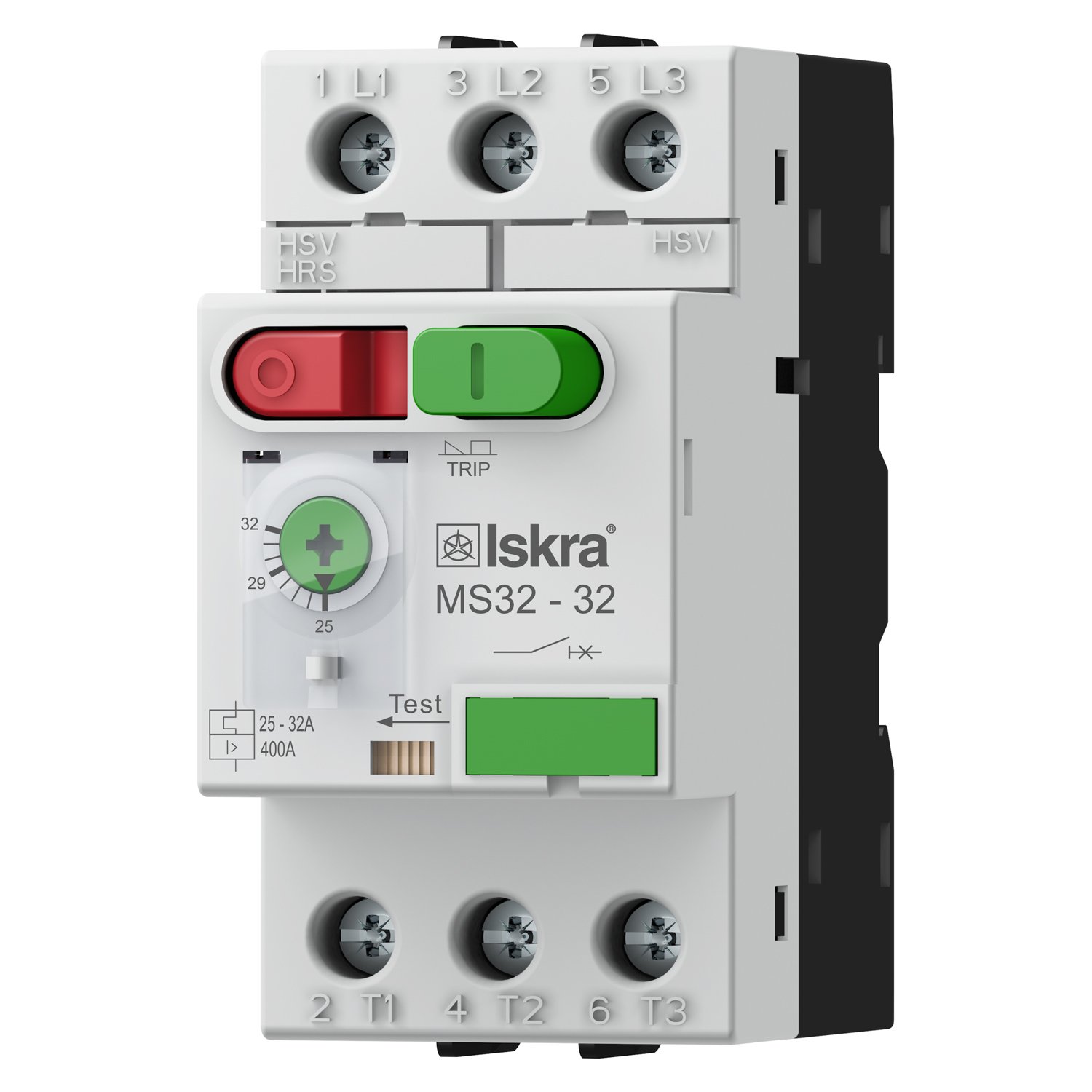

MS32-32
030108771000 EAN: 3838733033609
321221
MS32-32
Login for price and stockTechnical specifications
| Width (mm) | 45 |
| Height (mm) | 89.5 |
| Depth (mm) | 62.3 |
| Rated operation power at AC-3, 400 V (kW) | 15 |
| With integrated auxiliary switch | 0 |
| Rated permanent current Iu (A) | 32 |
| With integrated under voltage release | 0 |
| Number of poles | 3 |
| Rated operating voltage (V) | 690 |
| Overload release current setting (A) | 25 - 32 |
| Degree of protection (IP) | IP20 |
| With thermal protection | 0 |
| Type of electrical connection of main circuit | Screw connection |
| Type of control element | Push button |
| Switch off technique | Thermomagnetic |
| Rated operation power at AC-3, 230 V (kW) | 0 |
| Rated short-circuit breaking capacity lcu at 400 V, AC (kA) | 25 |
| Adjustment range undelayed short-circuit release (A) | 400 |
| Phase failure sensitive | Yes |
| Device construction | Complete device in housing |
