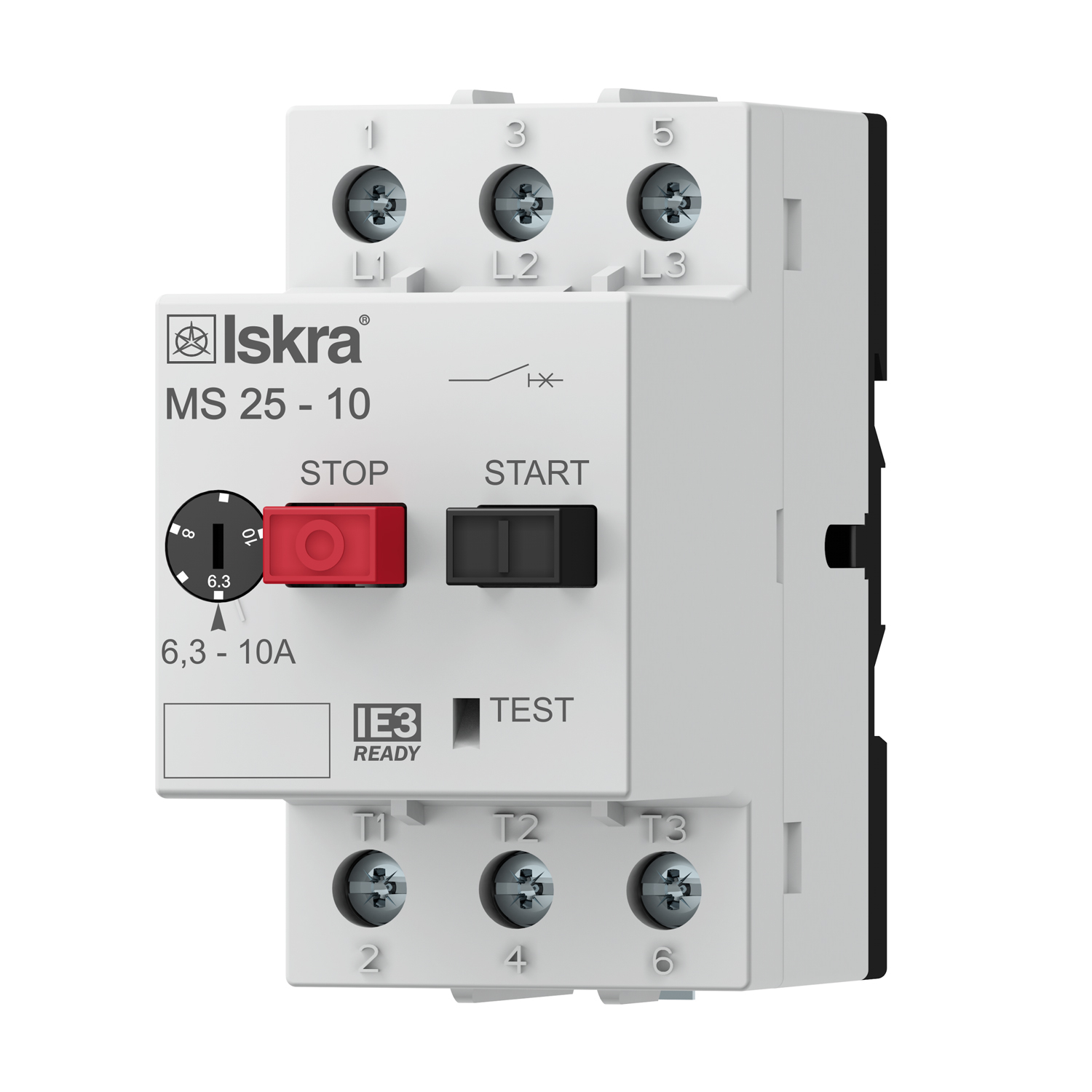

MS25-10
030107964000 EAN: 3838733020234
321211
MS25-10
Login for price and stockTechnical specifications
| Width (mm) | 45 |
| Height (mm) | 80 |
| Depth (mm) | 77 |
| Rated operation power at AC-3, 400 V (kW) | 4 |
| With integrated auxiliary switch | 0 |
| Rated permanent current Iu (A) | 10 |
| With integrated under voltage release | 0 |
| Number of poles | 3 |
| Rated operating voltage (V) | 690 |
| Overload release current setting (A) | 6.3 - 10 |
| Degree of protection (IP) | IP20 |
| With thermal protection | 0 |
| Type of electrical connection of main circuit | Screw connection |
| Type of control element | Push button |
| Switch off technique | Thermomagnetic |
| Rated operation power at AC-3, 230 V (kW) | 2.5 |
| Rated short-circuit breaking capacity lcu at 400 V, AC (kA) | 6 |
| Adjustment range undelayed short-circuit release (A) | 126 |
| Phase failure sensitive | Yes |
| Device construction | Complete device in housing |
