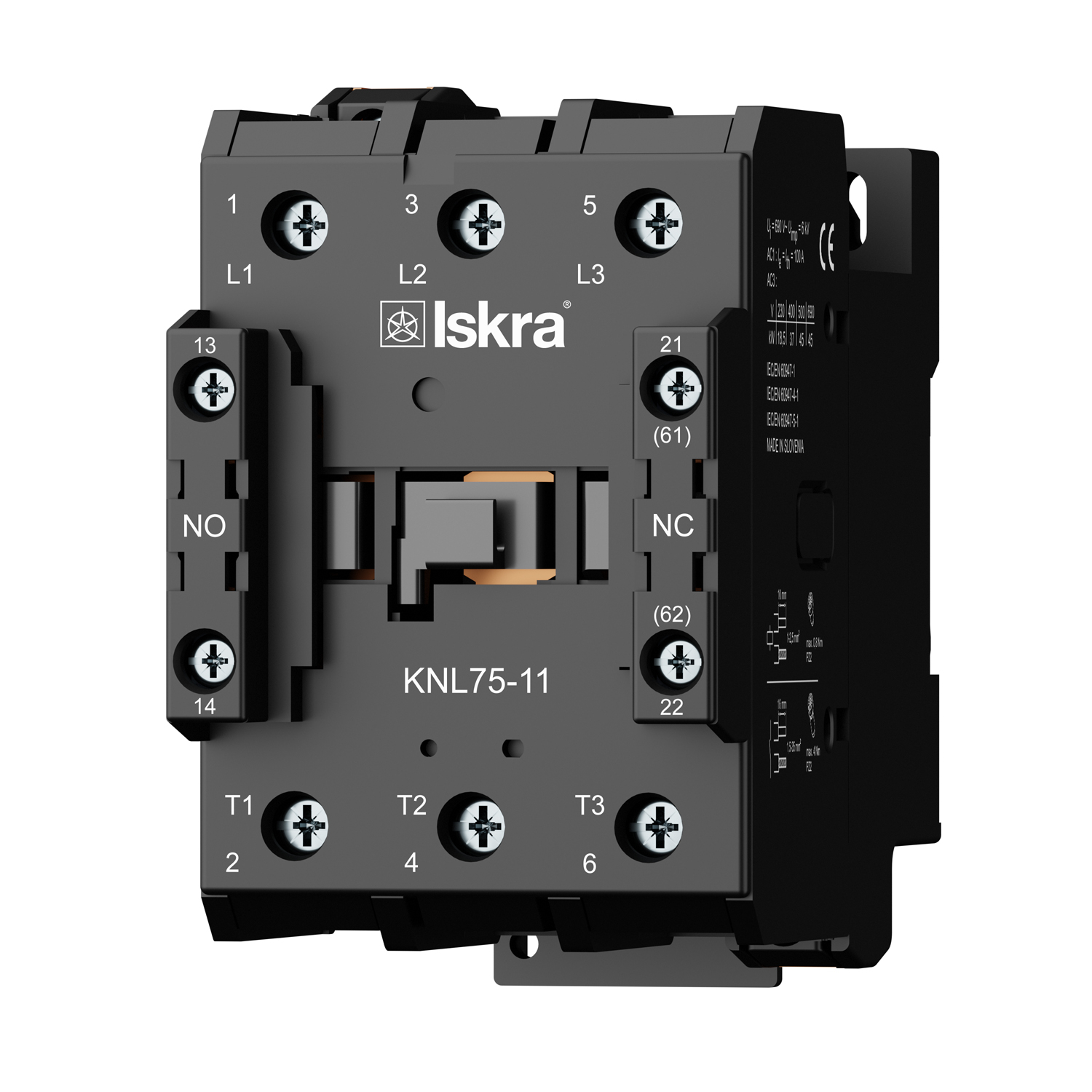

KNL75-11/480/500V50/60Hz
030051220000 EAN: 3838733080313
321126
KNL75-11/480/500
Login for price and stockTechnical specifications
| Width (mm) | 65 |
| Rated operation power at AC-3, 400 V (kW) | 37 |
| Number of main contacts as normally open contact | 3 |
| Number of normally closed contacts as main contact | 0 |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Rated operation current Ie at AC-3, 400 V (A) | 70 |
| Rated operation current Ie at AC-1, 400 V (A) | 100 |
| Rated control supply voltage Us at AC 50HZ (V) | |
| Rated control supply voltage Us at AC 60HZ (V) | |
| Rated control supply voltage Us at DC (V) | 0 |
| Type of electrical connection of main circuit | Screw connection |
| Voltage type for actuating | AC |
| Rated operation current Ie at AC-4, 400 V (A) | 41 |
| Rated operation power Ie at AC-4, 400 V (kW) | 22 |
| Rated operation power NEMA (kW) | 0 |
