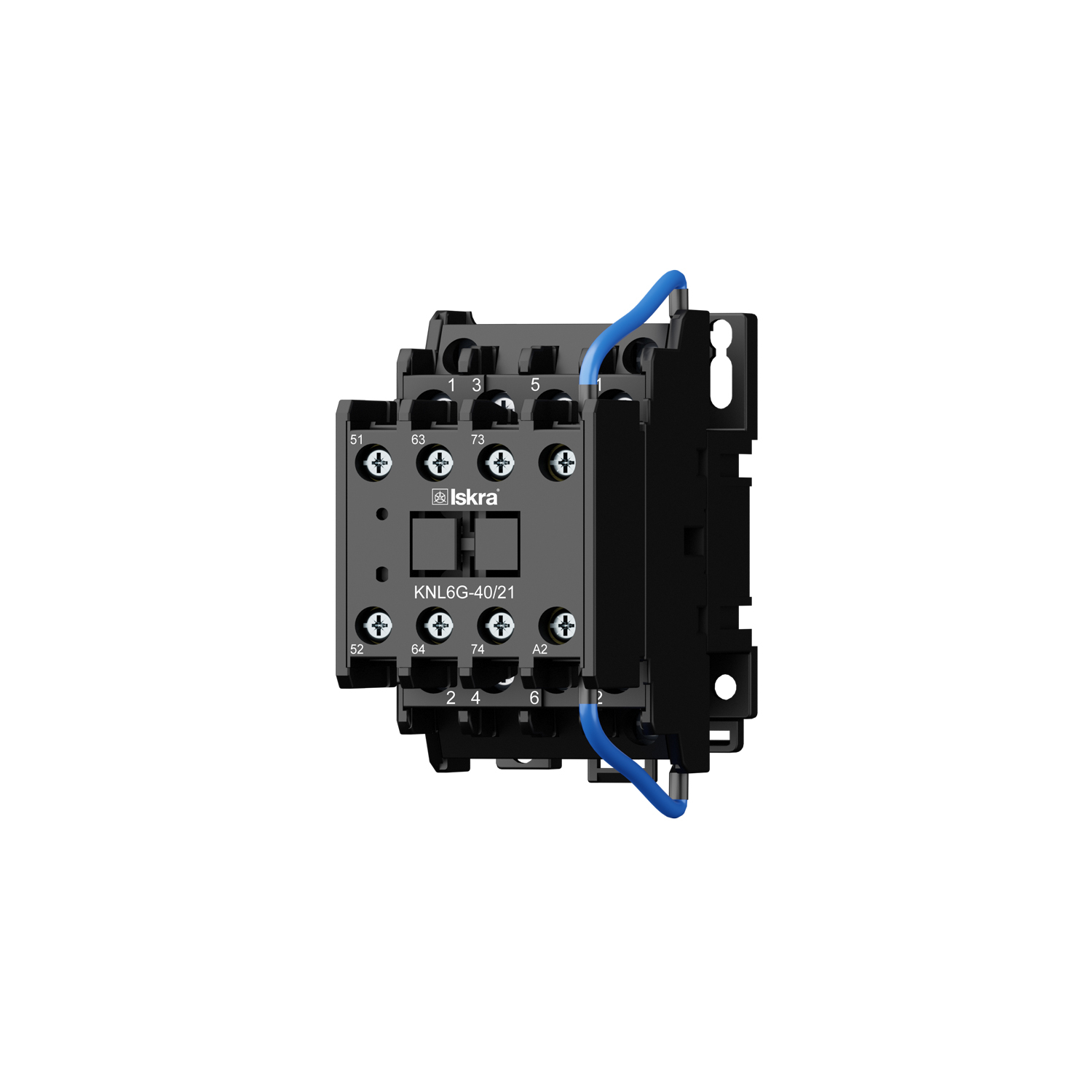

KNL6G-40/21/24V DC NDLG
030052129000 EAN: 3838733036938
321122
KNL6G-40/21/24V
Login for price and stockTechnical specifications
| Mounting method | DIN rail |
| Width (mm) | 45 |
| Rated insulation voltage Ui (V) | 690 |
| Number of auxiliary contacts as normally open contact | 6 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Rated operation current Ie at AC-15, 230 V (A) | 6 |
| Number of auxiliary contacts as change-over contact | 0 |
| Rated control supply voltage Us at AC 50HZ (V) | 0 |
| Rated control supply voltage Us at AC 60HZ (V) | 0 |
| Rated control supply voltage Us at DC (V) | 24 |
| Connection type auxiliary circuit | Screw connection |
| Voltage type for actuating | DC |
| Rated operation current Ie at AC-15, 400 V (A) | 4 |
