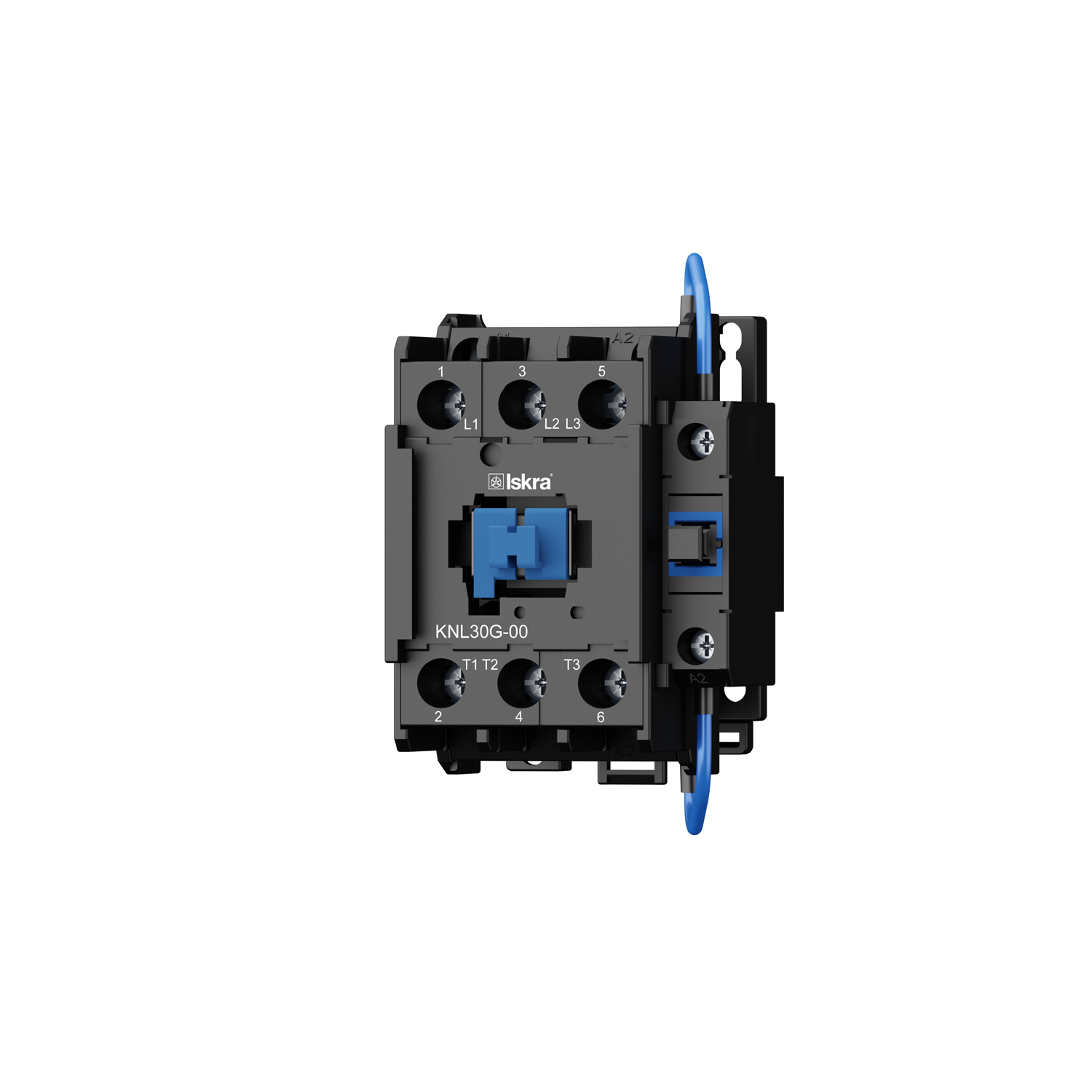

KNL30G-00/12V DC NPLG
030052514000 EAN: 3838733069950
321124
KNL30G-00/12V DC
Login for price and stockTechnical specifications
| Width (mm) | 56 |
| Rated operation power at AC-3, 400 V (kW) | 15 |
| Number of main contacts as normally open contact | 3 |
| Number of normally closed contacts as main contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated operation current Ie at AC-3, 400 V (A) | 30 |
| Rated operation current Ie at AC-1, 400 V (A) | 35 |
| Rated control supply voltage Us at AC 50HZ (V) | 0 |
| Rated control supply voltage Us at AC 60HZ (V) | 0 |
| Rated control supply voltage Us at DC (V) | 12 |
| Type of electrical connection of main circuit | Screw connection |
| Voltage type for actuating | DC |
| Rated operation current Ie at AC-4, 400 V (A) | 12.5 |
| Rated operation power Ie at AC-4, 400 V (kW) | 6.5 |
| Rated operation power NEMA (kW) | 0 |
