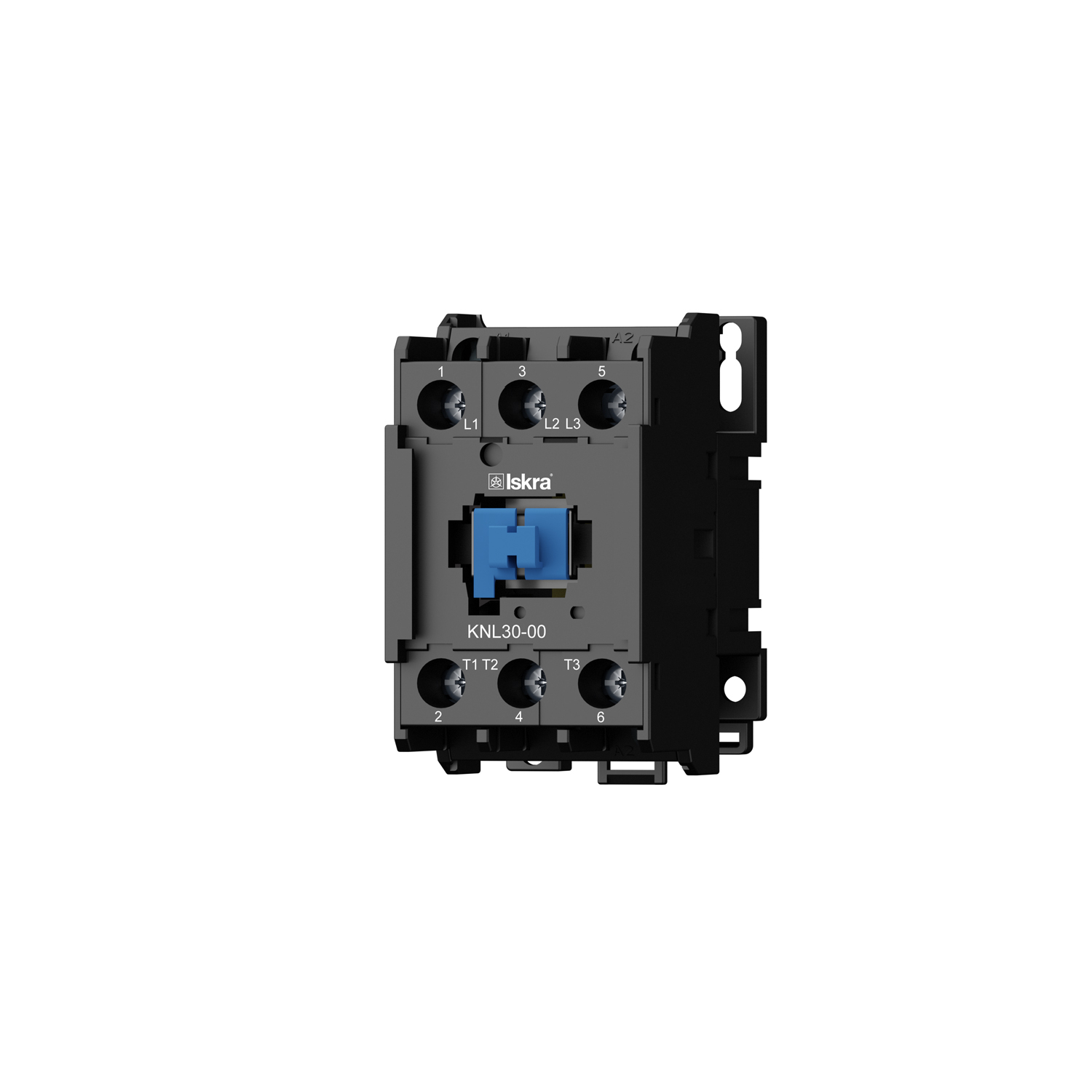

KNL30-00/24V/50/60Hz
030050690000 EAN: 3838733026274
321123
KNL30-00/24V/50/
Login for price and stockTechnical specifications
| Modular version | 0 |
| Rated operation power at AC-3, 400 V (kW) | 15 |
| Number of main contacts as normally open contact | 3 |
| Number of normally closed contacts as main contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated operation current Ie at AC-3, 400 V (A) | 30 |
| Rated operation current Ie at AC-1, 400 V (A) | 35 |
| Rated control supply voltage Us at AC 50HZ (V) | 24 |
| Rated control supply voltage Us at AC 60HZ (V) | 24 |
| Rated control supply voltage Us at DC (V) | 0 |
| Type of electrical connection of main circuit | Spring clamp connection |
| Voltage type for actuating | AC |
| Rated operation current Ie at AC-4, 400 V (A) | 12.5 |
| Rated operation power Ie at AC-4, 400 V (kW) | 6.5 |
| Rated operation power NEMA (kW) | 0 |
