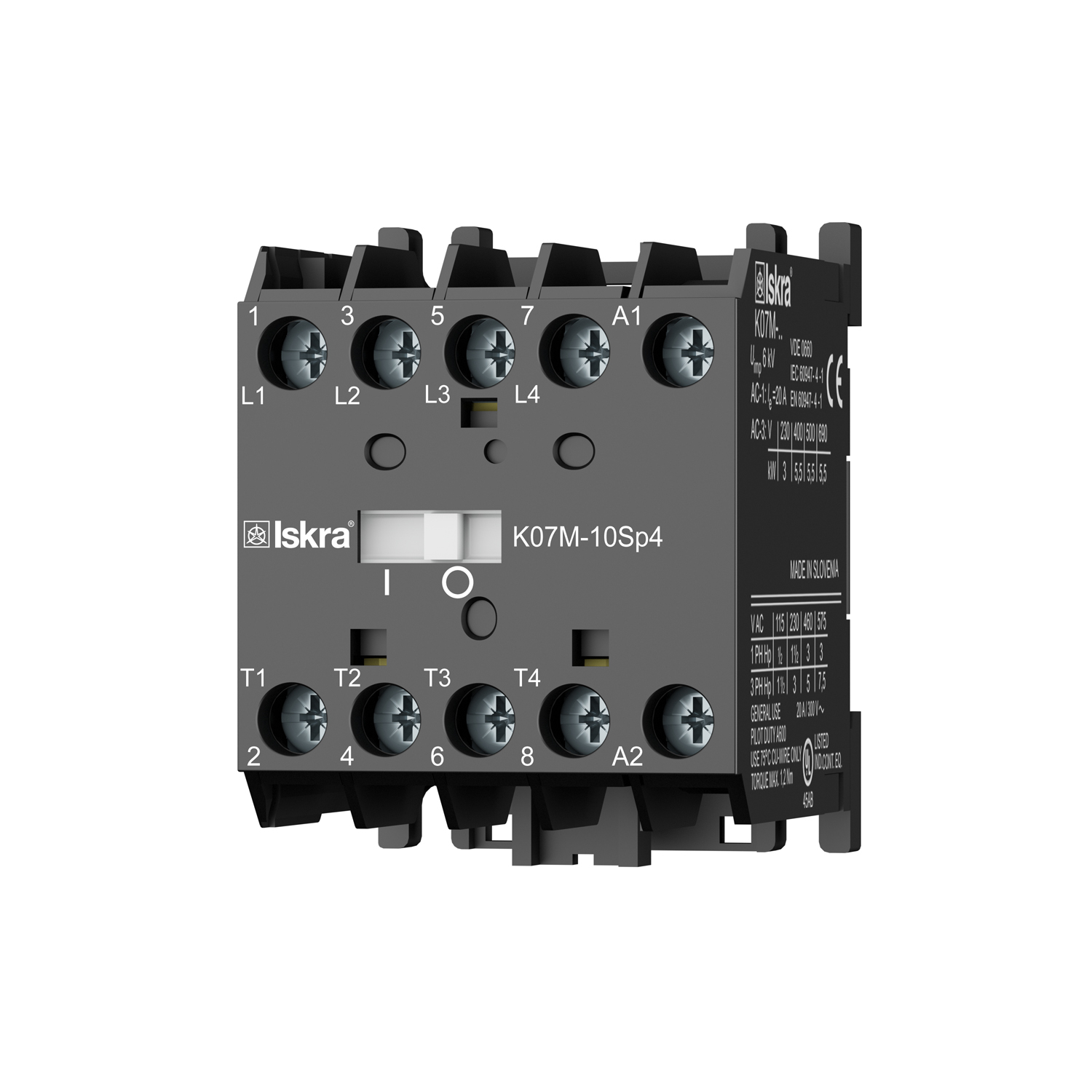

K07M-10Sp4/24V50/60Hz
030041045000 EAN: 3838733034613
321112
K07M-10SP4/24V50
Login for price and stockTechnical specifications
| Modular version | 0 |
| Rated operation power at AC-3, 400 V (kW) | 5.5 |
| Number of main contacts as normally open contact | 4 |
| Number of normally closed contacts as main contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated operation current Ie at AC-3, 400 V (A) | 11.3 |
| Rated operation current Ie at AC-1, 400 V (A) | 20 |
| Rated control supply voltage Us at AC 50HZ (V) | 24 |
| Rated control supply voltage Us at AC 60HZ (V) | 24 |
| Rated control supply voltage Us at DC (V) | 0 |
| Type of electrical connection of main circuit | Spring clamp connection |
| Voltage type for actuating | AC |
| Rated operation current Ie at AC-4, 400 V (A) | 5 |
| Rated operation power Ie at AC-4, 400 V (kW) | 2.2 |
| Rated operation power NEMA (kW) | 0 |
