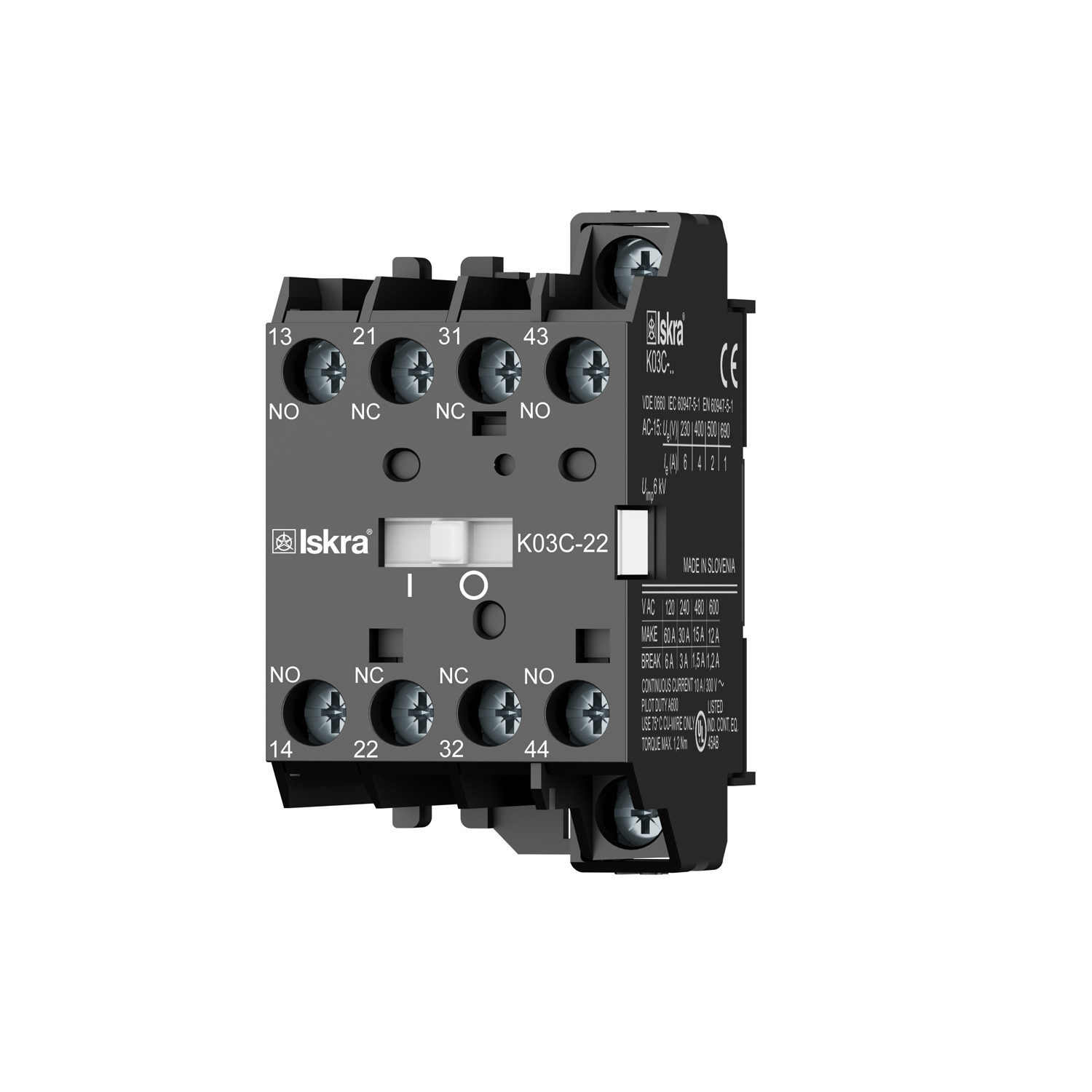

K03C-22/220/240V50/60Hz M7
030041156000 EAN: 3838733055519
321114
Last items
K03C-22/220/240V
Login for price and stockTechnical specifications
| Mounting method | DIN rail |
| Interface | 0 |
| Number of auxiliary contacts as normally open contact | 2 |
| Number of auxiliary contacts as normally closed contact | 2 |
| Rated operation current Ie , 400 V (A) | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Rated control supply voltage Us at AC 50HZ (V) | |
| Rated control supply voltage Us at AC 60HZ (V) | |
| Rated control supply voltage Us at DC (V) | 0 |
| Manual operation possible | 0 |
| With LED indication | 0 |
| Connection type auxiliary circuit | Screw connection |
| Number of auxiliary contacts as normally closed contact, delayed switching | 0 |
| Number of auxiliary contacts as normally open contact, leading | 0 |
| Voltage type for actuating | AC |
| Rated operation current Ie at AC-15, 230 V (A) | 6 |
| Rated operation current Ie at AC-15, 400 V (A) | 4 |
