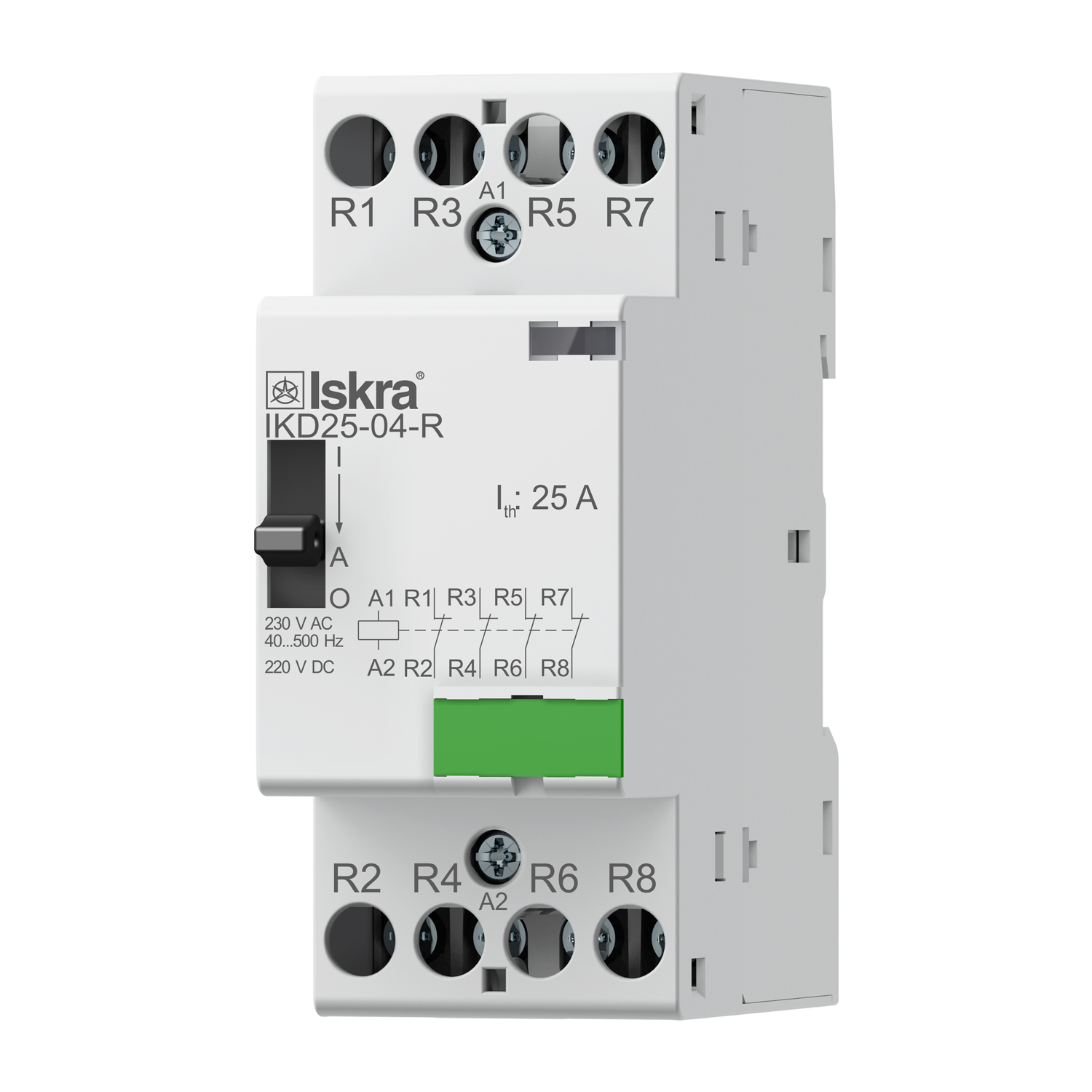

IKD25-04-R/230V40-500Hz
030046970000 EAN: 3838733071168
321132
IKD25-04-R/230V4
Login for price and stockTechnical specifications
| Built-in depth (mm) | 44 |
| Rated operating voltage (V) | 400 |
| Number of modular spacings | 2 |
| Max. incandescent lamp load (W) | 2200 |
| Max. load fluorescent lamp (VA) | 2600 |
| Max. load fluorescent lamp (Duo circuit) (VA) | 2400 |
| Max. load fluorescent lamp (parallel compensated) (VA) | 600 |
| Slider for hand switch | Yes |
| Voltage type (excitation voltage) | AC/DC |
| Voltage type (operating voltage) | AC |
| Degree of protection (IP) | IP20 |
| Rated operation current (A) | 25 |
| Additional equipment possible | |
| Number of contacts as normally closed contact | 4 |
| Number of contacts as normally open contact | 0 |
| Rated excitation voltage (V) |
