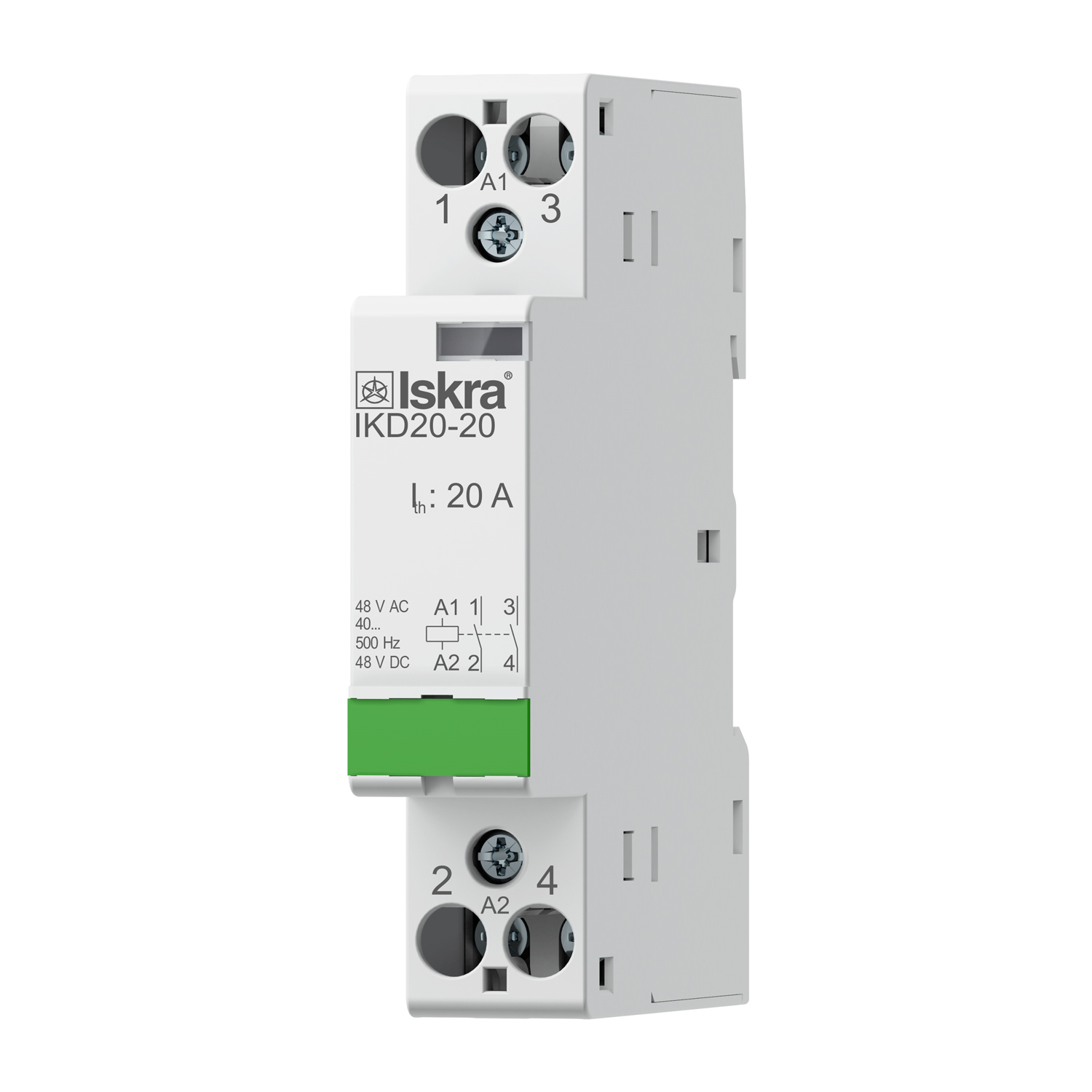

IKD20-20/48V40-500Hz
030046286000 EAN: 3838733038260
321132
IKD20-20/48V40-5
Login for price and stockTechnical specifications
| Built-in depth (mm) | 44 |
| Rated operating voltage (V) | 400 |
| Number of modular spacings | 1 |
| Max. incandescent lamp load (W) | 2000 |
| Max. load fluorescent lamp (VA) | 2000 |
| Max. load fluorescent lamp (Duo circuit) (VA) | 1850 |
| Max. load fluorescent lamp (parallel compensated) (VA) | 500 |
| Voltage type (excitation voltage) | AC/DC |
| Voltage type (operating voltage) | AC |
| Degree of protection (IP) | IP20 |
| Rated operation current (A) | 20 |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 2 |
| Rated excitation voltage (V) | 48 |
