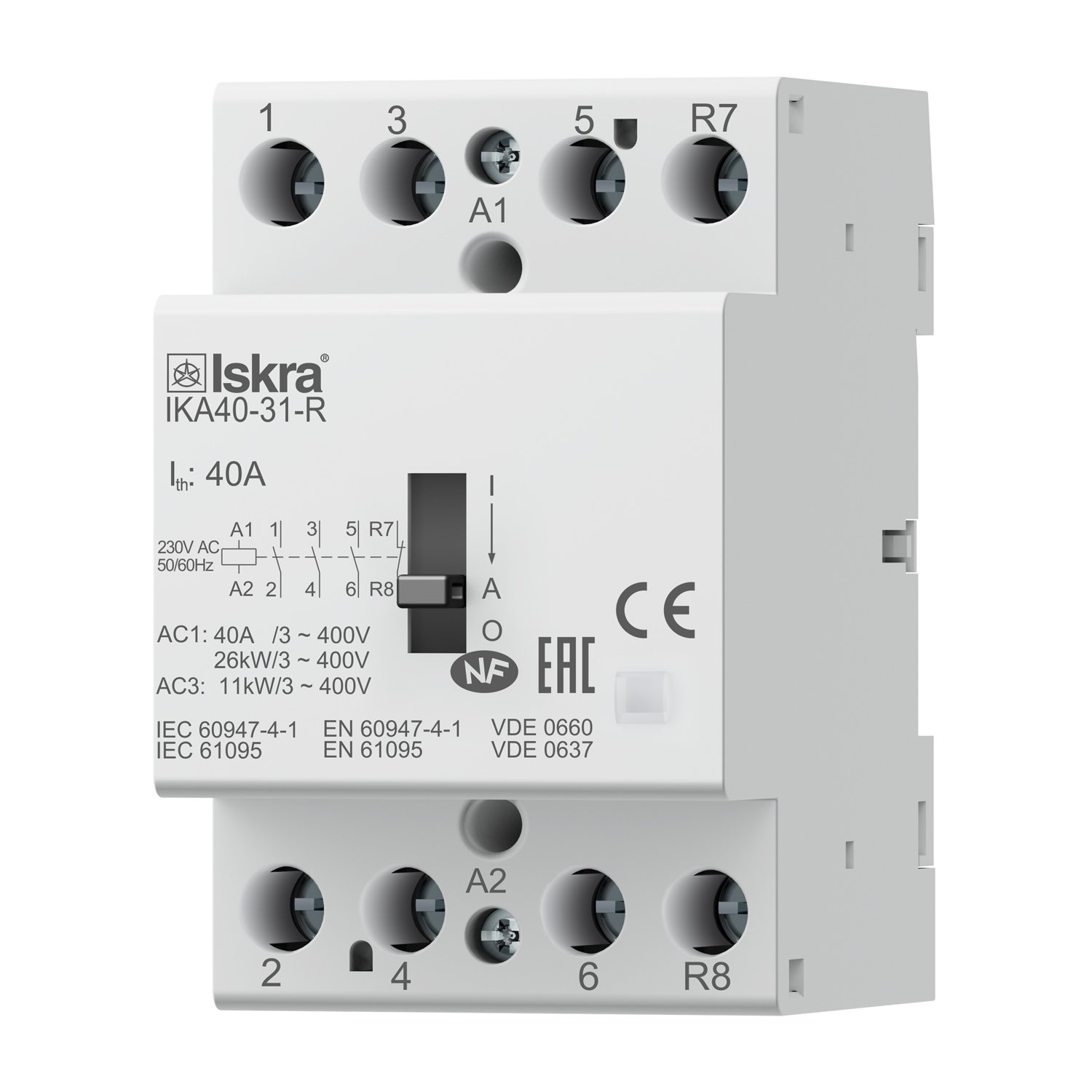

IKA40-31-R/230V50/60Hz
030045743000 EAN: 3838733084212
321133
IKA40-31-R/230V5
Login for price and stockTechnical specifications
| Built-in depth (mm) | 43 |
| Rated operating voltage (V) | 400 |
| Number of modular spacings | 3 |
| Max. incandescent lamp load (W) | 4000 |
| Max. load fluorescent lamp (VA) | 4600 |
| Max. load fluorescent lamp (Duo circuit) (VA) | 6000 |
| Max. load fluorescent lamp (parallel compensated) (VA) | 3700 |
| Slider for hand switch | Yes |
| Voltage type (excitation voltage) | AC |
| Voltage type (operating voltage) | AC |
| Degree of protection (IP) | IP20 |
| Rated operation current (A) | 40 |
| Additional equipment possible | |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 3 |
| Rated excitation voltage (V) | 230 |
