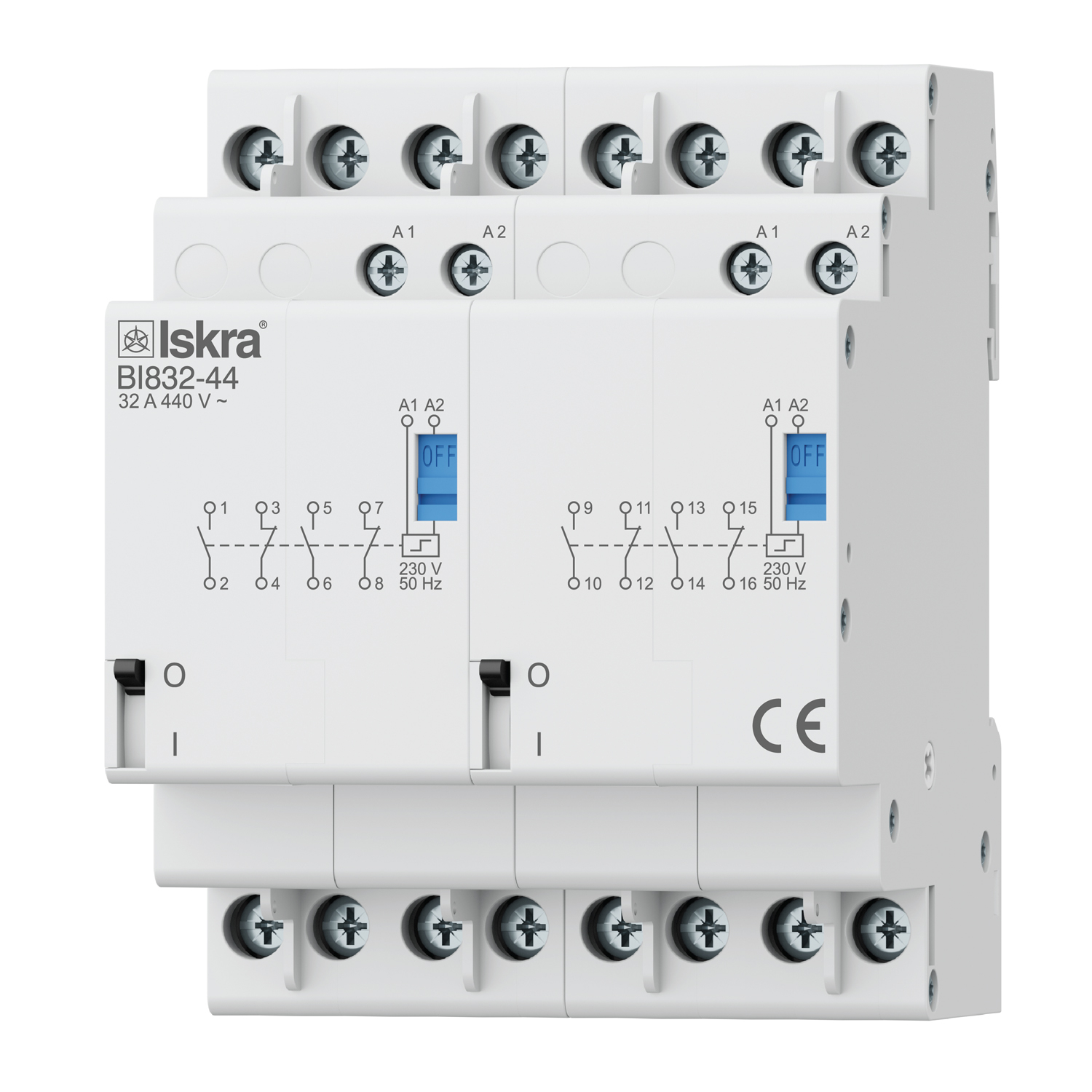

BI832-44/230V50Hz
030070230000 EAN: 3838733069943
321152
Last items
BI832-44/230V50H
Login for price and stockTechnical specifications
| Mounting method | DIN rail |
| Function | Mechanical switch |
| Built-in depth (mm) | 44 |
| Width in number of modular spacings | 4 |
| Control voltage 1 (V) | 230 |
| Control voltage 2 (V) | 0 |
| Type of control voltage 1 | AC |
| Frequency control voltage 1 (Hz) | 50 |
| Frequency control voltage 2 (Hz) | 0 |
| Voltage type of supply voltage | AC |
| Supply voltage (V) | 440 |
| Max. switching current (cos phi = 0.6) (A) | 32 |
| Max. incandescent lamp load (W) | 3700 |
| Max. load fluorescent lamp (VA) | 3700 |
| Max. load fluorescent lamp (Duo circuit) (VA) | 3700 |
| Max. load fluorescent lamp (parallel compensated) (VA) | 2300 |
| Manual operation possible | |
| Rated switch current (A) | 32 |
| Number of contacts as normally closed contact | 4 |
| Number of contacts as normally open contact | 4 |
| Number of contacts as change-over contact | 0 |
